[LNX-204/LNX-204e] LAN Multiplexer 4:1
Enable to switch multi ports from a distant place via
Ethernet or an external contact point.
Overview
LNX-204/LNX-204e is a LAN multiplexer to switch 4 channel LAN port. The function of switching PoE ON/OFF is not supported. All 8-wires are switched physically by the following three ways: send simple command from PC via LAN, input control signal from an external contact point or change switches on the product itself.
A multiplexer IC specialized for LAN is used in the switching circuit. This is very useful to switch external network to internal network, and to connect with the network only when required. It can promote labor-saving for inspection process and auto-inspection system of LAN devices.
LNX-204 supports PoE. That makes it possible to be powered via a LAN cable (PoE compatible HUB or other is required). It can also be powered by the AC adapter.
Network setting can be saved to and restored from a microSD card. Restoring the setting information from a microSD card is very convenient when replacing LNX-204.
LNX-204e is an economy edition of LNX-204 that removes PoE function and an external contact connector.
LNX-204 *Second and subsequent images are CG models
LNX-204e *Second and subsequent images are CG models
* Image with optional accessories
Features
- Switch Ethernet wires by multiplexer IC
no need to insert and pull out the cable - Switch a port from a distance via Ethernet and or an external contact point
Swich a port via a virtual COM port is also available by using our original application, LNX-VCP - Switch a port manually by changing switch of the product body
- Because unconnected port is not connected, it's possible to use it as a simple firewall
- Easy configuration by microSD
- Easy to restore the setting data at the time of replacement
- Easy to send the setting data by e-mail
- No restriction for IP address setting, out of the network segment
- Easy to backup the setting data
- Configuration via Ethernet is also available by using original setting tool
- Power for the main body supports PoE, powered via LAN cable
switching port does not support PoE
* The function of switching PoE ON/OFF is not supported.
* LNX-204e is not supported the PoE function. - AC adapter is included in the package
- FG terminal is equipped
- All LAN ports are protected from ESD
- Non-use of 10 Restricted substances of RoHS directive
- MADE IN JAPAN

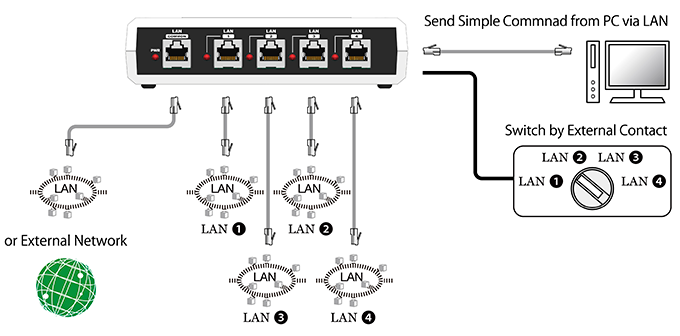

Connection Examples
Change common port LAN or external network to LAN1-4
SPECIFICATION
| Item | Description | Remarks | |
|---|---|---|---|
| model | LNX-204 | LNX-204e | |
| Power | 5VDC, Supplied by AC adapter or LAN connector (PoE function) | DC5V Supplied by AC adapter |
|
| RS-232C Connector | D-Sub 9pin Male (#4-40 UNC screws are mounted) |
None |
M2.6 screws are also attached for accessary |
| Current Consumption | Less than 300mA | ||
| Network Interface | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) half-duplex / full-duplex (auto detected) |
||
| Common/Selecting Port | 10/100/1000 Base-T | (*1) | |
| LAN Connector | RJ45 x 6 |
ESD protection ±11KV |
|
| Protocol | TCP / UDP / Telnet | ||
| Setting Memory Card | microSD card | For configuration | |
| LED | Power LED Connection LED x 4 System LED micro SD card access LED LINK Status LED (RJ45 Connector) ACT Status LED (RJ45 Connector) |
||
| Operating Ambient Temperature | -20 to 60 [°C] (-4 to 140 [°F]) | No condensation permitted | |
| Operating Ambient Humidity | 10 to 85 %RH | No condensation permitted | |
| Storage Ambient Temperature | -20 to 60 [°C] (-4 to 140 [°F]) | No condensation permitted | |
| Storage Ambient Humidity | 10 to 85 % RH | No condensation permitted | |
| Weight | Approx. 250 [g] | Only main body | |
| Dimensions | 165 x 80.5 x 39 [mm] (6.496" x 3.169" x 1.535") |
Without projections | |
(*1) The operation of this product is confirmed with 10/100/100 BASE-T. But the product is inserted between LAN cables, speed reduction can be occurred. The communication speed is not guaranteed.
When the LAN cable is long, using giga bit corresponding switching hub may improve the speed reduction.
Pin Assignment of External Contact Connector
* LNX-204e doesn’t have an external contact connector.
D-sub 9 pin male connector
#4-40 UNC screws are mounted by factory setting. You can change them to attached M2.6 screws.
| Pin No | Name | Direction | Remarks |
|---|---|---|---|
| 1 | SEL 1 | IN | Select LAN1 |
| 2 | SEL 2 | IN | Select LAN2 |
| 3 | SEL 3 | IN | Select LAN3 |
| 4 | SEL 4 | IN | Select LAN4 |
| 5 | GND | - | GND |
| 6 | NC | - | - |
| 7 | NC | - | - |
| 8 | NC | - | - |
| 9 | (COM) | - | Power Input (option) |
| CASE | FG | - | Connect with FG Terminal |
LNX Setting Tool
Using this application, you can easily to make a configuration data of the LNX series.
After saving the configuration data to the microSD card, please insert it to the product. Then the setting data, WR_DATA.TXT, will be read automatically when the product is powered on. At that time, the read data is backup in the microSD card as RD_DATA.TXT.
The setting data is stored in the product. No need to indsert the microSD card next time.
When replacing LNX series, just insert the same microSD card then you could restore the same setting.
When your PC is in the same segment as LNX series, you can also control the setting via ethernet.
PACKAGE CONTENTS
- LNX-204 or LNX-204e
- microSD card (with USB adapter)
- AC adapter
- Driver & Application CD
DOCUMENTATION
User's manual, Outline Drawing, etc
Price and Optional Accessories
| Description | MODEL | Image | List Price (JPY) | Stock Status |
|---|---|---|---|---|
| LAN Multiplexer 4:1 |
LNX-204 |  |
||
| LAN Multiplexer 4:1 economy type |
LNX-204e |  |
||
| Attachment for vertical direction |
ACC-027 |  |
||
| Attachment for horizontal direction |
ACC-028 |  |
||
| Attachment for DIN rail type B |
ACC-031 |  |
||
| Neodymium magnet set |
ACC-036 |  |
